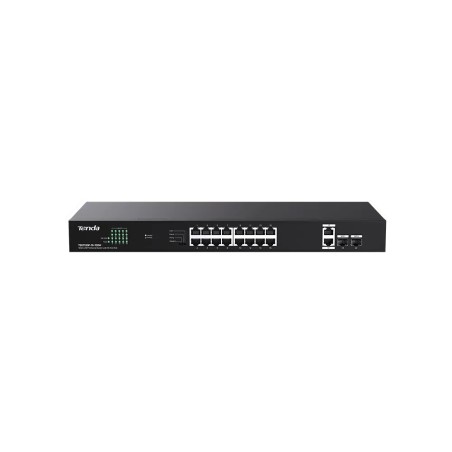

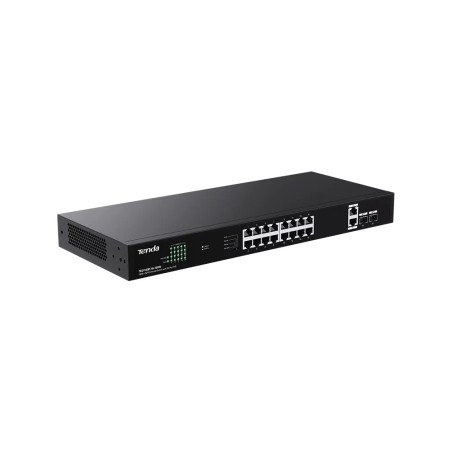

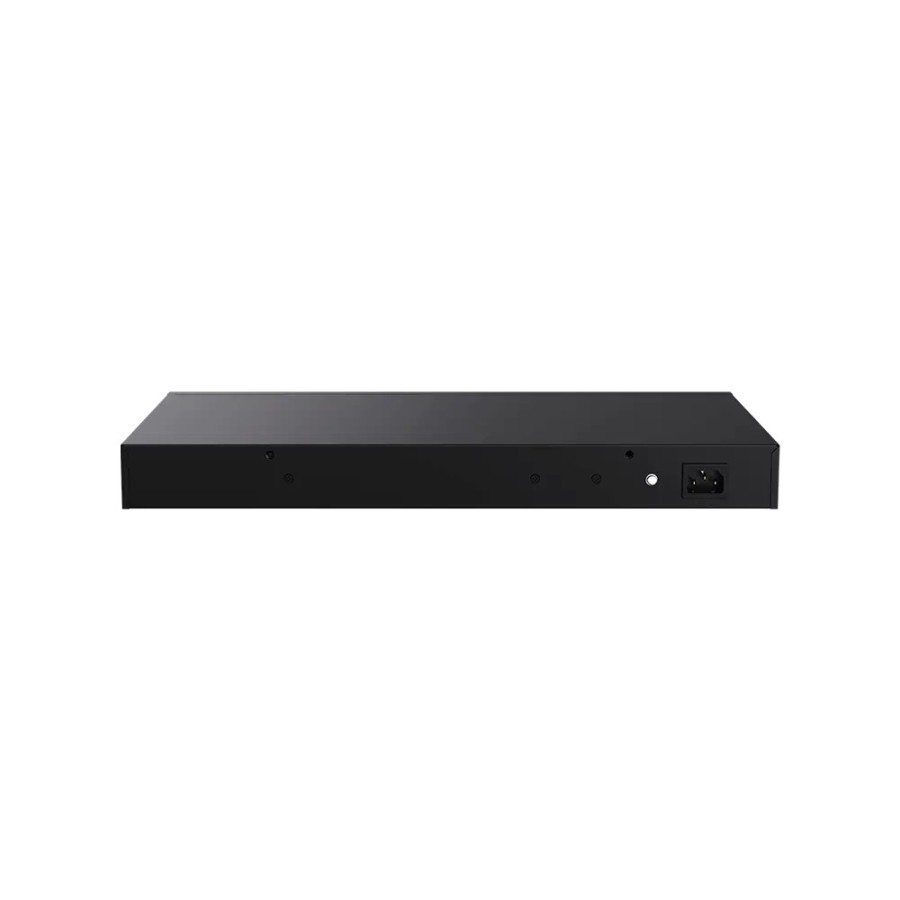

18GE+2SFP Ethernet Switch With 16-Port PoE

18GE+2SFP Ethernet Switch With 16-Port PoE

0,00 MAD
HT

TEG1120P-16-150W

  • Switch 18GE+2SFP avec 16 ports PoE+
  • Hauteur standard 1U, montage rack
  • 4 modes : Standard, Priority, Extend, VLAN
  • Puissance max par port 30W, totale 150W
  • 16 ports PoE+ Gigabit RJ45, 2 ports uplink RJ45, 2 slots SFP

Le TEG1120P-16-150W est un switch Ethernet Gigabit non manageable conforme IEEE 802.3af/at, capable d’alimenter automatiquement les appareils PD. Avec 30W max par port et 150W total, il supporte montage rack, configuration simple et Plug & Play. Idéal pour PME, hôtels, écoles et parcs nécessitant vidéosurveillance et réseau sans fil.

Quantité
Liste de souhaits
Comparer

18+2 Port PoE Switch – 230W Total Budget

? Hardware Specifications

  • Network Standards: IEEE 802.3 / 802.3u / 802.3ab / 802.3x / 802.3af / 802.3at
  • LED Indicators: Power, Link/Act, PoE MAX
  • Interfaces:
    • 18 × 1GE RJ45 Ports
    • 2 × 1GE SFP Ports
  • Transmission Media: Recommended CAT5/5e UTP or better
  • Fan: 1 built-in fan
  • Dimensions: 440 × 178 × 44 mm
  • Level of Protection:
    • Port: 6 KV
    • Power: 6 KV
  • Forwarding Mode: Store-and-forward
  • Switch Capacity: 40 Gbps
  • Packet Forwarding Rate: 29.8 Mpps
  • Buffer: 4 Mb
  • MAC Address Table: 8K
  • PoE Budget:
    • Single Port: AF 15.4W, AT 30W
    • Total Device: 230W
  • Power Consumption: 250W
  • Input Voltage: 100–240V AC, 50/60Hz

?️ Mounting & Environment

  • Mounting Options: Rack, Desktop, Wall
  • Operating Temperature: 0°C ~ 45°C
  • Storage Temperature: -40°C ~ 70°C
  • Operating Humidity: 10% ~ 90% RH non-condensing
  • Storage Humidity: 5% ~ 90% RH non-condensing

✅ Certification

  • FCC, CE, RoHS

⚙️ Software Functions

  • One-key network mode switch:
    • Standard: All ports can communicate; normal unmanaged PoE switch mode.
    • Priority: Ports 1–8 are high-priority, reducing packet loss and congestion.
    • Extend: Ports 9–16 can transmit up to 250 meters; all ports communicate with each other.
    • VLAN: Ports 1–16 cannot communicate with each other but can communicate with ports 17, 18, SFP1, and SFP2; ideal for isolating broadcast storms and DHCP conflicts.
