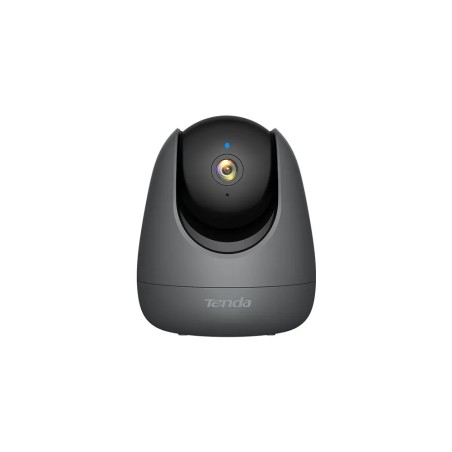

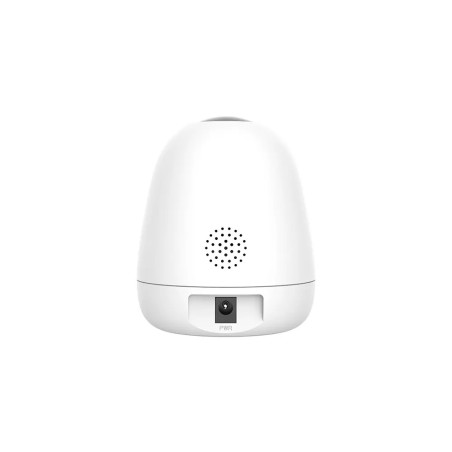

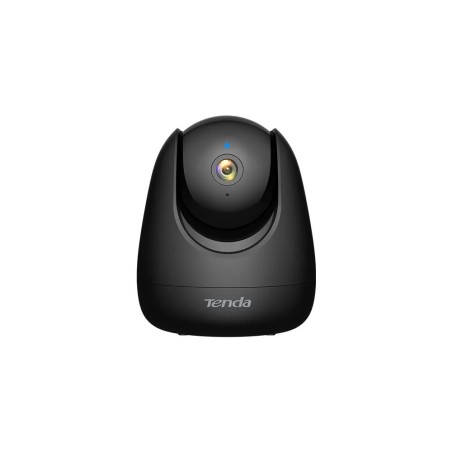

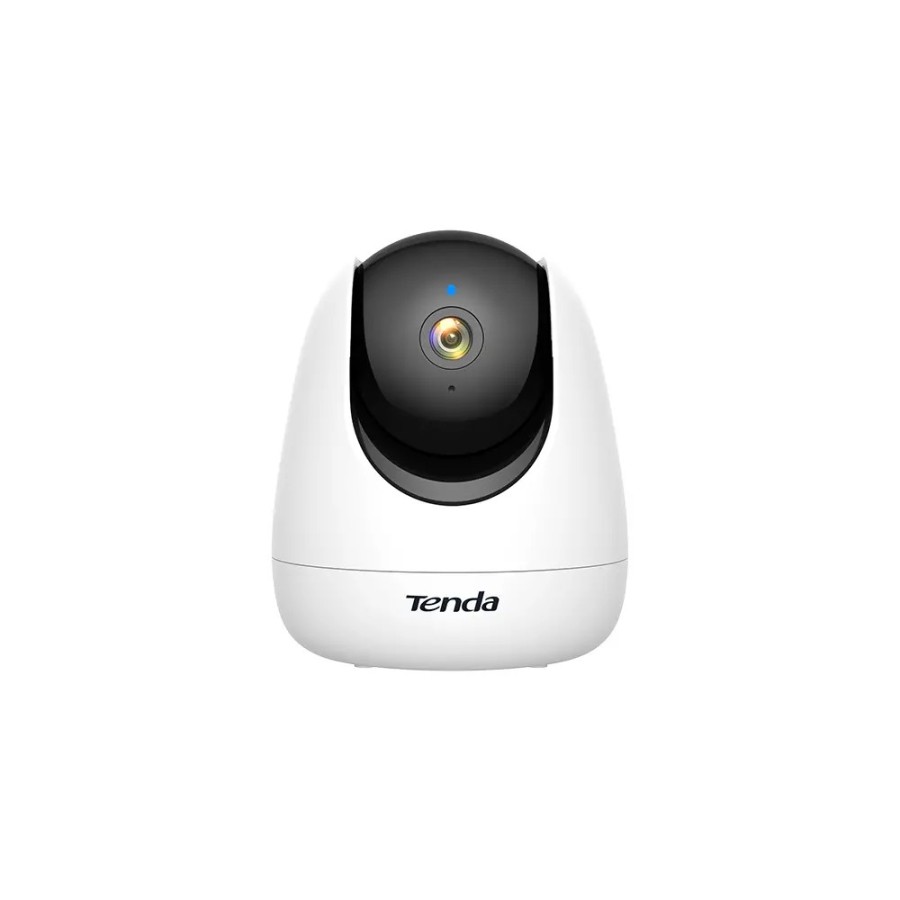

Compact Full HD Camera – 1080P, Smart Detection

? Camera

• Image Sensor: 1/3" Progressive Scan CMOS
• Day & Night: ICR type
• Lens: 4 mm, F2.2
• FOV: H 79.4°, V 48°, D 87°
• Illuminator: 4 IR Lights (up to 10 m / 32 ft)
• IR Wavelength: 850 nm
• Night Vision Mode: Black & White Mode

? Video

• Encoding: H.264
• Main Stream: 1920×1080, 1280×720
• Sub Stream: 640×360
• Frame Rate: 1–15 fps (default 15 fps)
• Bit Rate: 256 kbps – 8192 kbps, VBR

? Audio

• Encoding: G.711A, 8 kHz
• Two-way Audio

?️ Image

• Enhancement: DWDR, 3D DNR

? Network

• ONVIF: Supported
• Protocols: TCP/IP, UDP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP

? Pan & Tilt

• Pan Range: 0°–355°
• Tilt Range: -65°–90°
• Preset: 6
• Patrol: Panoramic Patrol, Preset Patrol

? Wi-Fi

• Antenna: Internal
• Standard: IEEE 802.11 b/g/n
• Max Rate: 144 Mbps
• Frequency: 2.4 GHz (2412–2472 MHz, CH1–CH13)
• Channel Width: 20 MHz
• Modulation: DSSS/OFDM
• Transmit Power: <0.062 W (EIRP)
• Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

⚡ Alarm & Smart Detection

• Motion & Human Detection
• Smart Linkage: Sound & Light Alert, Human Tracking
• DIY Audio: 3 Custom Audios

? Storage & Interface

• Audio Input: Built-in MIC
• Audio Output: Built-in Speaker
• Storage: Micro SD Slot, up to 256 GB
• Reset Button: Supported
• LED Indicator: Dual Color (Red & Blue)

? General & Environment

• Power: 9V DC, 1A (Ø5.5mm & Ø2.1mm Plug)
• Material: Plastic
• Smart Integration: Amazon Alexa
• Dimensions: 103 × 88 × 88 mm
• Weight: 206 g (390 g with package)
• Installation: Desktop, Ceiling Mounting
• Operating Temp: -10°C ~ 45°C
• Storage Temp: -40°C ~ 70°C
• Operating Humidity: 10% ~ 95% RH
• Storage Humidity: 3% ~ 95% RH

? Package Contents

• Camera
• Power Adapter (3 m cord)
• Installation Template
• Mounting Bracket
• Mounting Accessories Kit
• Quick Installation Guide

✅ Certification

• CE, RoHS, FCC, RCM, UKCA
