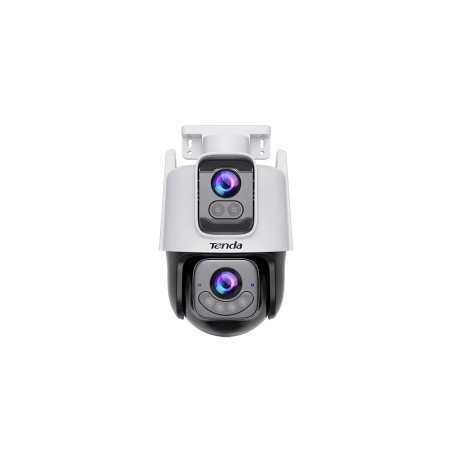

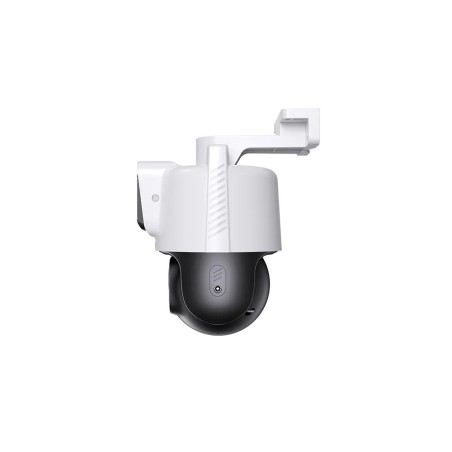

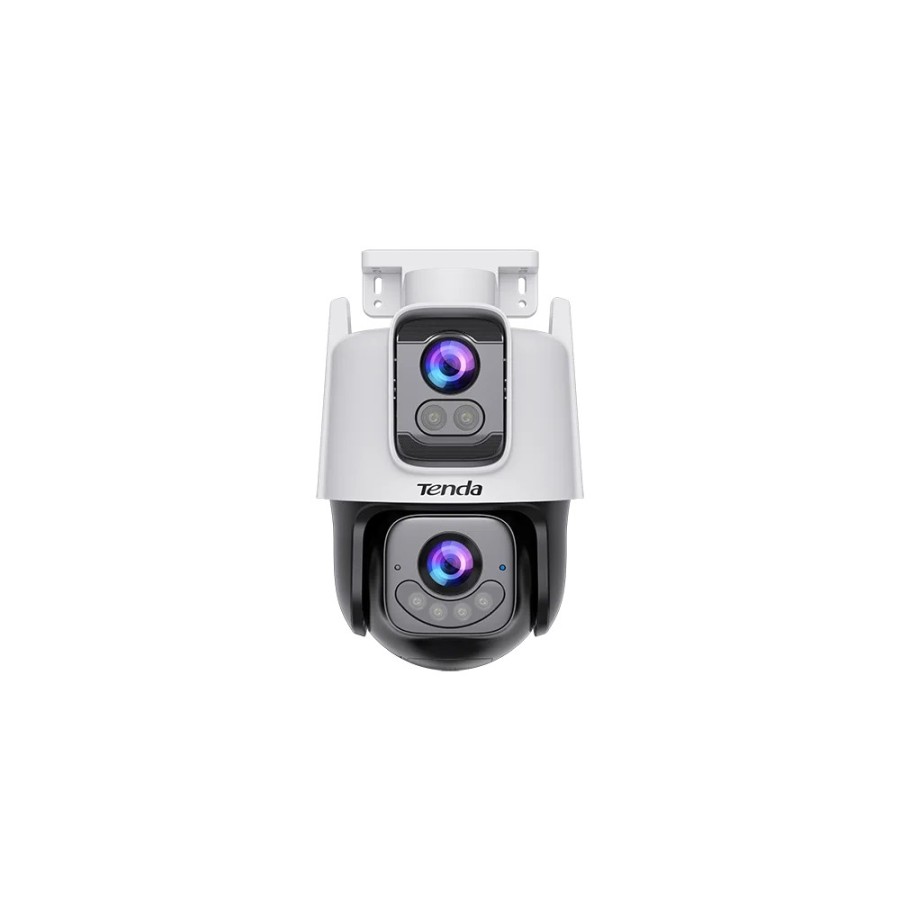

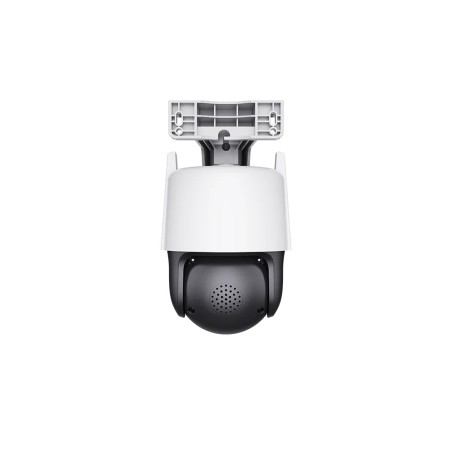

Dual Lens / PT Outdoor Camera – Full HD, Smart Detection, IP65

? Camera Specifications

• Image Sensor: 1/3" Progressive Scan CMOS
• Day & Night: ICR type
• Bracket Angle Adjustment (Pan): 0°–260°
• Lens:
  • Fixed Lens: 4 mm, F1.6
  • PT Lens: 6 mm, F1.6
• FOV:
  • Fixed Lens: H 82.3°, V 44.7°, D 97.4°
  • PT Lens: H 51.8°, V 28.2°, D 60.4°
• Illuminator: 6 IR Lights + 6 Spotlights, distance up to 30 m / 100 ft
• IR Wavelength: 850 nm
• Night Vision Mode: Smart Mode, Full Color Mode, Black & White Mode

? Video & Audio

• Video Encoding:
  • Fixed Lens: H.265, H.264
  • PT Lens: H.265, H.264
• Main Stream Resolution:
  • Fixed Lens: 2304×1296, 1920×1080, 1280×720
  • PT Lens: 2304×1296, 1920×1080, 1280×720
• Sub Stream Resolution: 640×360
• Frame Rate: 1–25 fps (2304×1296: 1–18 fps), default 18 fps
• Bit Rate: 512 kbps – 4096 kbps, CBR/VBR
• Audio Encoding: G.711A, G.711U, AAC; 8 kHz; Two-way audio, voice input

?️ Image & Enhancement

• DWDR, BLC, HLC, 3D DNR
• Privacy Mask: 4 Areas

? Network

• Ethernet Port: 1 × RJ45, 10/100 Mbps
• ONVIF: Supported
• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets
• Client Apps: TDSEE (mobile), TDSEE STUDIO (PC)
• Web Browser: Chrome, Edge, Opera (plug-in free live view)

? Pan & Tilt

• Pan Range: 0°–355°
• Tilt Range: 0°–90°
• Preset: 6
• Patrol: Panoramic Patrol, Preset Patrol

? Wi-Fi

• Antenna: Internal
• Standard: IEEE 802.11 b/g/n/ax
• Max Rate: 287 Mbps
• Frequency: 2.4 GHz (2412–2472 MHz, CH1–CH13)
• Channel Width: 20/40 MHz
• Modulation: DSSS/OFDM/OFDMA
• Transmit Power: <0.1 W (EIRP)
• Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

⚡ Alarm & Smart Features

• Smart Detection: Motion, Human, Vehicle, Line Crossing, Intrusion
• Smart Linkage: Sound & Light Alert, Dual-lens Linkage Tracking
• DIY Audio: 3 Custom Audio Files

?️ Interface & Storage

• Audio Input: Built-in MIC (adjustable volume)
• Audio Output: Built-in Speaker, 76 dBA at 1m (adjustable)
• Storage: Micro SD Card Slot, up to 512 GB
• Reset Button: Supported
• LED Indicator: Dual Color (Red & Blue)

? Power & Environment

• Power: 12V DC, 1A (Ø5.5mm & Ø2.1mm Plug)
• Material: Plastic
• Protection Level: IP65
• Installation: Wall, Ceiling, Pole Mounting
• Operating Temp: -30°C ~ 60°C
• Storage Temp: -40°C ~ 70°C
• Operating Humidity: 10% ~ 95% RH
• Storage Humidity: 3% ~ 95% RH

? Package Contents

• Camera
• Power Adapter (3 m cord)
• Installation Template
• Mounting Bracket
• Mounting Accessories Kit
• Waterproof Kit
• Quick Installation Guide

✅ Certification

• CE, RoHS, FCC, RCM, UKCA
