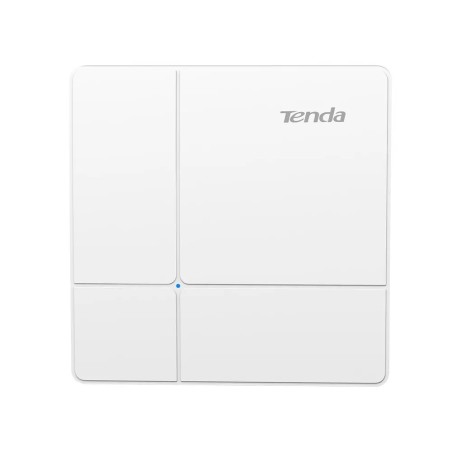

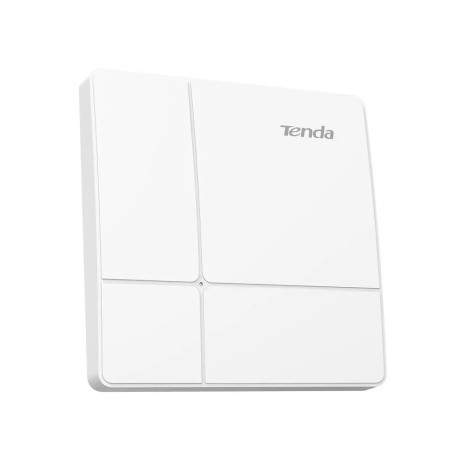

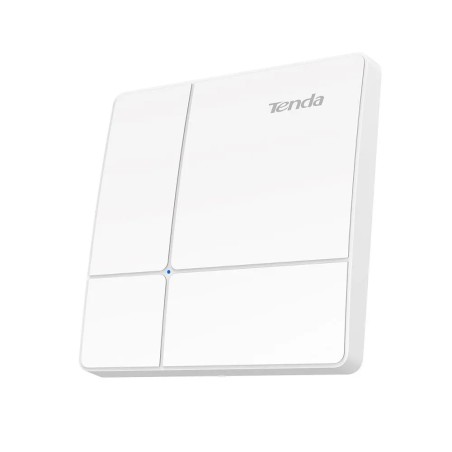

AC1200 Wave 2 Gigabit Access Point

AC1200 Wave 2 Gigabit Access Point

0,00 MAD
HT

i24 AC1200

  • Point d'accès AC1200 Wave 2 Gigabit
  • Gestion cloud Tenda CloudFi
  • Alimentation 802.3af ou DC
  • 1 port Ethernet Gigabit
  • 300 Mbps (2,4 GHz) + 867 Mbps (5 GHz)

Le i24 est un point d'accès bi-bande au plafond conforme 802.11ac Wave 2, offrant jusqu'à 1167 Mbps. Avec MU-MIMO et antennes omnidirectionnelles intégrées, il étend la couverture Wi-Fi. L'alimentation PoE IEEE 802.3af/at permet un branchement longue distance sans modifier l'installation électrique. Peut être géré centralement via contrôleurs Tenda AC pour déployer plusieurs i24 facilement.

Quantité
Liste de souhaits
Comparer

i24 – Ceiling AP 2.4GHz & 5GHz Wave2

? Product Information

  • Model: i24
  • Category: Ceiling
  • Dimension: 178 × 178 × 38 mm

? Hardware

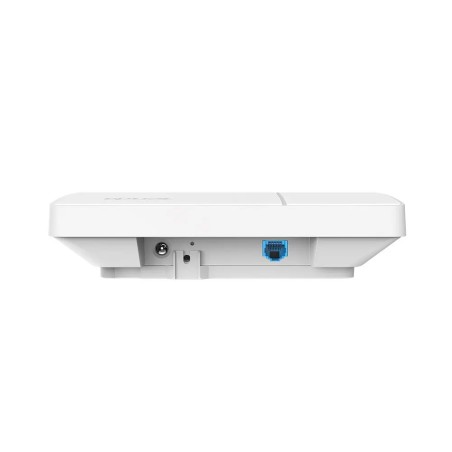

  • Interface: 1 × 10/100/1000 Mbps Ethernet Port (PoE)
  • Button: 1 × RESET
  • LED Indicator: 1 × SYS
  • Maximum Power Consumption: 10.5 W
  • Power Supply: 802.3af & DC 12V 1A
  • Max. Number of Wireless Clients: 256
  • Recommended Clients: 40
  • Antenna Gain: 3 dBi
  • 2.4GHz Max Power: CE <20 dBm, FCC <26 dBm
  • 5GHz Max Power: CE <23 dBm, FCC <26 dBm
  • Reception Sensitivity:
    • 802.11b: -93 dBm
    • 2.4 GHz 802.11n (MCS7): -73 dBm
    • 5 GHz 802.11a: -93 dBm
    • 5 GHz 802.11n (MCS7): -74 dBm

? Wireless Specifications

  • Frequency Range: 2.4 GHz & 5 GHz
  • Standard & Protocol: 802.11a/b/g/n/ac Wave2
  • Maximum Wireless Speed: 2.4GHz: 300 Mbps, 5GHz: 867 Mbps
  • Bandwidth: 20/40/80 MHz

? Software Features

  • Operating Mode: AP / Client AP
  • Max No. of SSID: 2.4GHz: 8, 5GHz: 4
  • Hide SSID, Beamforming, Fast Roaming (802.11k/v/r): Supported
  • Security: WEP, WPA-PSK, WPA2-PSK, WPA, WPA2
  • Access Control, Adjustable Power, Automatic Channel, AP Isolation, Guest Network: Supported
  • Connected Clients Control, RSSI Threshold, Weak Signal Terminal Elimination, Prioritize 5 GHz: Supported
  • VLAN Tagging for SSID, LED Control, MU-MIMO, Diagnostics Tool: Supported
  • Reboot at Specified Interval, Scheduled Reboot, Firmware Upgrade, Reset, Backup/Restore Configuration: Supported
  • Device Management: Local Web Management, Tenda CloudFi Cloud Management, Tenda CloudFi APP Management, Tenda Gateway Management (G300-F / G0-8G-PoE / G0-5G-PoE / G1)
  • System Logs: Supported

?️ Environment & Default Info

  • Operating Temperature: -10℃ ~ 40℃
  • Storage Temperature: -30℃ ~ 70℃
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 10% ~ 90% non-condensing
  • Default Address: tendawifi.com / 10.16.16.169
