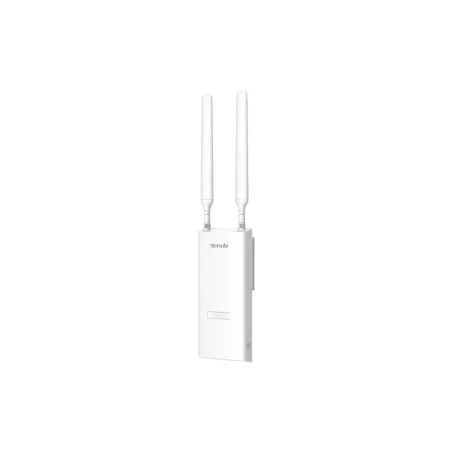

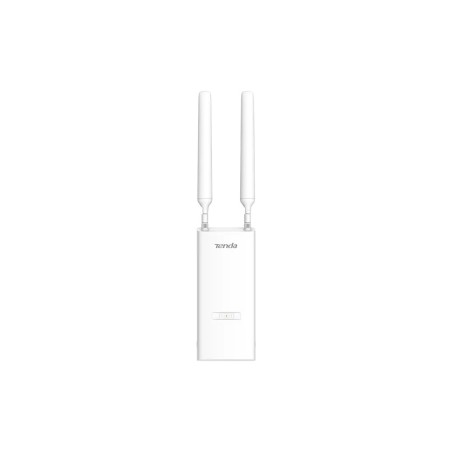

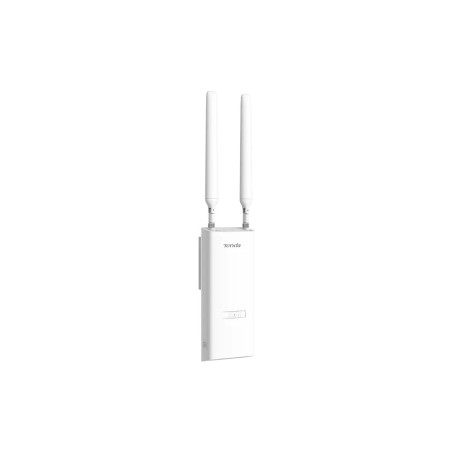

OAP1200 – Outdoor AP 2.4GHz & 5GHz Wave2

? Product Information

• Model: OAP1200
• Category: Outdoor AP
• Dimension: 194.7 × 83 × 42.1 mm

? Hardware Specifications

• Interface: 1 × 10/100/1000 Mbps Ethernet Port (PoE)
• Button: 1 × Reset
• LED Indicator: 1 × SYS
• Maximum Power Consumption: 11.5 W
• Power Supply: 802.3af & 24V 0.5A Passive PoE
• Max. Number of Clients: 256
• Recommended Clients: 50
• Antenna Gain: 5 dBi
• 2.4 GHz Max Power: CE <20 dBm, FCC <26 dBm
• 5 GHz Max Power: CE <23 dBm, FCC <26 dBm
• Reception Sensitivity:
  • 802.11b: -93 dBm
  • 2.4 GHz 802.11n (MCS7): -73 dBm
  • 5 GHz 802.11a: -93 dBm
  • 5 GHz 802.11n (MCS7): -74 dBm

? Wireless Specifications

• Frequency Range: 2.4 GHz & 5 GHz
• Standard & Protocol: 802.11a/b/g/n/ac Wave2
• Maximum Wireless Speed: 2.4GHz: 300 Mbps, 5GHz: 867 Mbps
• Bandwidth: 20/40/80 MHz

? Software Specifications

• Operating Mode: AP / Client+AP
• Max No. of SSID: 2.4GHz: 8, 5GHz: 4
• Hide SSID, OFDMA, Beamforming, Fast Roaming (802.11k/v/r): Supported
• Security: WEP, WPA-PSK, WPA2-PSK, WPA, WPA2
• Access Control, Adjustable Power, Automatic Channel, AP Isolation, Guest Network: Supported
• Connected Clients Control, RSSI Threshold, Weak Signal Terminal Elimination, Prioritize 5 GHz: Supported
• VLAN Tagging for SSID, LED Control, MU-MIMO, Diagnostics Tool: Supported
• Reboot at Specified Interval, Scheduled Reboot, Firmware Upgrade, Reset, Backup/Restore Configuration: Supported
• Device Management: Local Web Management, Tenda CloudFi Cloud Management, Tenda CloudFi App Management, Tenda Gateway Management (G300-F / G0-8G-PoE / G0-5G-PoE / G1)
• System Logs: Supported

?️ Environment & Default Info

• Operating Temperature: -30℃ ~ 50℃
• Storage Temperature: -30℃ ~ 70℃
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 10% ~ 90% non-condensing
• Default Address: tendawifi.com / 10.16.16.169
