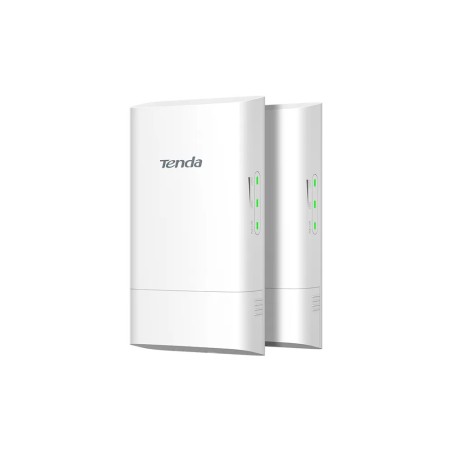

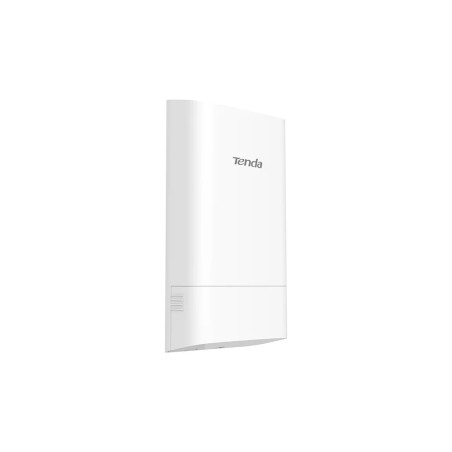

5GHz 9dBi 11AC 867Mbps Outdoor CPE

O1-5G – 5GHz Outdoor CPE 11AC 867Mbps

? Product Information

• Model: O1-5G
• Dimension: 132 × 72 × 46.3 mm
• Deployment: Pole/Wall Mount
• Application: PtP and PtMP wireless connection for private ISP access or CCTV surveillance

? Hardware

• Frequency Range: 5 GHz
• Compliant Standards: IEEE 802.11a/n/ac
• Max Wireless Rate: 867 Mbps

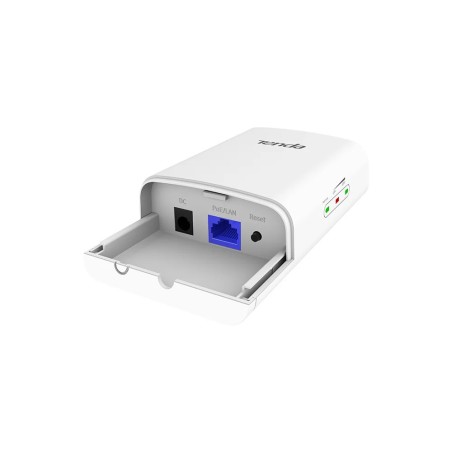

• Interfaces: 1 × 10/100 Mbps LAN Port
• Antenna: 9 dBi, Dual Polarization
• Antenna Beamwidth: Horizontal 30°, Vertical 30°, Elevation 30°
• Reset Button: 1
• Power Consumption: 4.7 W
• Waterproof Level: IP65
• LED Indicators: PoE/LAN, LED1, LED2
• Power Method: 12V 1A DC / 12V 1A Passive PoE
• Passive PoE: via PoE/LAN (+4,5 pins -7,8 pins), up to 60 m, Voltage 9–13V DC
• Reception Sensitivity:
  • 11a 6Mbps: -92 dBm ±1.5 dBm
  • 11n MCS7 HT20: -72 dBm ±1.5 dBm
  • 11ac MCS9 HT80: -64 dBm ±1.5 dBm

? Wireless & Software Features

• Operating Modes: AP, Station
• Enable/Disable Wireless Radio: Supported
• SSID Hidden & Wireless Client Isolation: Supported
• Channel Bandwidth: 20/40/80 MHz
• Transmission Power: Adjustable by 1 dBm
• WMM & APSD: Supported
• Wireless Security: 64/128 WEP, WPA-PSK, WPA2-PSK, WPA & WPA2-PSK
• Transparent Bridge: Supported
• VPN Pass-Through: PPTP, L2TP
• Schedule Reboot, Page Timeout, Ping Watchdog: Supported
• Firmware Upgrade & Backup/Restore Configuration: Supported
• Username Management & System Logs: Supported
• Managed by Controller: PC Software – CPE Assistant

?️ Environment & Certification

• Operating Temperature: -30℃ ~ 60℃
• Storage Temperature: -40℃ ~ 70℃
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 10% ~ 90% non-condensing
• Certification: FCC, CE, RoHS

? Package Contents

• 1 × 5GHz 9dBi 11AC 867Mbps Outdoor CPE
• 1 × Power Adapter
• 1 × PoE Injector
• 1 × Quick Installation Guide

? Default Login Info

• IP: 192.168.2.1
• Username: admin
• Password: admin
