OS3 – 5GHz 11AC Outdoor CPE

OS3 is a high-performance outdoor CPE available in 1-pack or 2-pack. Operating on 5GHz with 12dBi directional antenna, it delivers 11AC speeds up to 867Mbps. Features include 12V 1A DC or 12V 1A Passive PoE support, 6000V lightning protection, IP65 waterproof housing, and four fast Ethernet ports. Ideal for point-to-point or point-to-multipoint wireless connections, OS3 ensures stable, long-range coverage for private ISP access or CCTV surveillance.

Quantité
Liste de souhaits
Comparer

OS3 – 5GHz Outdoor CPE 11AC 867Mbps

? Product Information

  • Model: OS3
  • Dimension: 193 × 109 × 61 mm
  • Deployment: Pole/Wall Mount
  • Application: PtP and PtMP wireless connection for private ISP or CCTV

? Hardware

  • Frequency Range: 5 GHz
  • Compliant Standards: IEEE 802.11a/n/ac
  • Private TDMA Protocol: TD-MAX
  • Max Wireless Rate: 867 Mbps

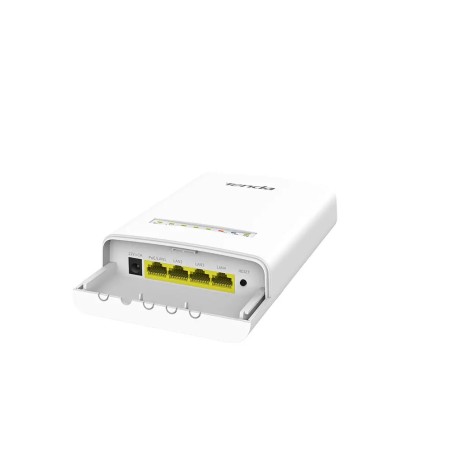

  • Interfaces: 4 × 10/100 LAN Ports
  • Antennas Gain: 12 dBi
  • Antenna Beamwidth: Horizontal 30°, Vertical 30°, Elevation 30°
  • Reset Button: 1
  • Power Consumption: 4.7 W
  • Waterproof Level: IP65
  • LED Indicators: Power, PoE/LAN1-4
  • Power Method: 12V 1A Passive PoE / 12V 1A DC
  • Lightning Protection: 6000 V
  • Reception Sensitivity:
    • 11a 6Mbps: -90dBm ±1.5dBm
    • 11n MCS0 HT20: -70dBm ±1.5dBm
    • 11n MCS7 HT20: -70dBm ±1.5dBm
    • 11ac MCS9 HT80: -59dBm ±1.5dBm

? Wireless & Software Features

  • Operating Modes: AP, Station, WISP, Repeater, Router
  • Enable/Disable Wireless Radio: Supported
  • SSID Hidden & Isolation: Supported
  • Wireless Client Isolation: Supported
  • Channel Bandwidth: 20/40/80 MHz
  • Client Limitation for SSID & Weak Signal Limitation: Supported
  • Wireless Security: WPA-PSK, WPA2-PSK, Mix WPA/WPA2-PSK
  • Transparent Bridge & VLAN Tagging: Supported
  • DHCP Server: Supported
  • VPN Pass-Through: PPTP, L2TP
  • Remote Web Access: Supported
  • Schedule Reboot, Page Timeout, Ping Watchdog: Supported
  • DDNS: noip, dyndns.org
  • Network Diagnostics: Ping, Traceroute, Signal Scan
  • Firmware Upgrade & Backup/Restore Configuration: Supported
  • Username Management & System Logs: Supported
  • Managed by Controller: PC Software – CPE Assistant

?️ Environment & Certification

  • Operating Temperature: -30℃ ~ 60℃
  • Storage Temperature: -40℃ ~ 70℃
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 10% ~ 90% non-condensing
  • Certification: FCC, CE, RoHS

? Package Contents

  • 1 × 5GHz 12dBi 11AC 867Mbps Outdoor CPE
  • 1 × Power Adapter
  • 1 × PoE Injector
  • 1 × Quick Installation Guide

? Default Login Info

  • IP: 192.168.2.1 / 192.168.2.2
  • Username: admin
  • Password: admin
